CellarPro Wine Cellar Cooling Units

For the most versatile and most reliable of products, CellarPro is the connoisseur’s choice of wine cellar cooling equipment.

CellarPro as manufactures are quality leaders in the Wine Cellar Cooling market place. Their range of product options has expanded over the last couple of years to include a range of Wine Cooling Systems ideal for many applications such as humidors, home theater equipment cupboards, fur closets, cured meat lockers a well as wine cabinets, residential wine cellars and commercial custom wine cellars and displays.

Their trademark isfor well-engineeredefficient, reliable,feature rich systems that are known for being the quietest in the industry. Their customer service and problem resolution is excellent and they provide some of the most comprehensive warrantees for their products amongst the cooling unit manufacturers.

CellarPro provide a range cooling units and systems that include self-contained units and ductless split-refrigeration systems.

Their features include humidity control, alarms and bottle probes. They also manufacture the wine cooling unit for our Le Cache wine cabinets.

CellarPro Self-Contained Wine Cellar Cooling Units –Affordable, yet Quiet

CellarPro systems are designed for residential and commercial custom wine cellars and cabinets as small as 200 cubic feet and as large as 1500 cubic feet. There are 3 models available:

• The CellarPro 1800 Series
• The CellarPro 3200 Series
• The CellarPro 4200 Series

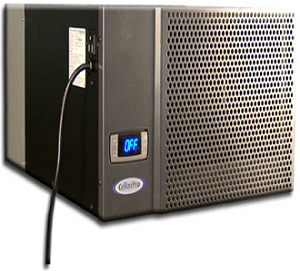

The CellarPro 1800 Self-Contained Wine Cellar Cooling Series

The CellarPro 1800 Series is an ideal replacement for Breezaire and Wine Mate wine cooling units found in many wine cabinet models already in the marketplace. The 1800 Series measure 18″ W x 16.5″ D x 10.5″ H and you have the option of a rear venting or top venting model. They are also perfect for small wine cellars up to 400 cubic feet, such as a closet or a wine cellar intended to be installed created under a stairwell.

The CellarPro 3200 Self-Contained Wine Cellar Cooling Series

The CellarPro 3200 Series are designed for small to medium sized wine cellars ranging from 400 to 800 cubic feet. Measuring 14.25″ W x 25.1″ D x 19.7″ H the 3200 modelscan be installed easily between existing wall studs. Once it is installed you can simply plug it in and your wines will begin to cool immediately. You will need a dedicated 20 amp 115V/60Hz circuit. The 3200 wine cellar cooling units are efficient in temperaturesthat range from 20F to 115F. For temperatures that get below freezing we recommend the low ambient kit option.

The CellarPro 4200 Self-Contained Wine Cellar Cooling Series

The CellarPro 4200 Series is perfect for wine cellars ranging from 500 to 1500 cubic feetin size. It too measures 14.25″ W x 25.1″ D x 19.7″ H and installation is easy. There is no need for professional assistance as there are no refrigerant lines to set or charge with refrigerants. The 4200 model also requires a dedicated 20 amp circuit at 115V/60Hz and is effective in temperature ranges from 20F to 15F.

See an example of one these self-contained wine refrigeration units installed in a real custom wine cellar here: Custom Wine Cellars California Garage Conversion.

CellarPro Self-Contained Wine Cooling Systems Feature Variable Fan Speeds & Humidity Control

In high-temperature locations the units have a setting designed to maximize their performance and efficiency. In low-temperature environments the settings can be left on low to enable their natural exceptionally quiet operation. Additional features include electronic temperature and a humidity control which is also adjustable. In addition the unit has an optional remote temperature display and controller.

These CellarPro self-contained wine cooling units areengineered to be installed in through-the-wall. They are designed to function well and last when exposed to extreme interior or exterior environments. They can operate well in temperature conditions ranging from 40F to 115F degrees.

For installations in environments that can dip below 40F degrees, we recommend the optional compressor heater to maintain optimum performance of the cooling unit.

CellarPro Ductless Split-Refrigeration Systems

Sophisticated, quiet and reliable are just a few adjectives to describe the CellarPro Ductless Split-Refrigeration Systems and with prices starting around $2,499 they are some of the most affordable.

Designed for wine cellars as small as 300 cubic feet or up to 2000 cubic feet, are as versatile as they are efficient. CellarPro Systems are rated for indoor or outdoor placements. The Split Systems by nature eliminate fan noise and hot air exhaust to the indoors. They also do not require any large openings in your wine cellar.

When connecting the condensing units and the evaporator, all that is required is one small opening for the line-set and drain line. Inside the wine room, the evaporator is designed to secure to the wall close to the top of the wine cellar. Outside the wine cellar, the condensing unit can be placed most anywhere up to 75 feet away.

CellarPro Mini Split 3000 Wine Cellar Cooling Series

CellarPro Model 4000 Split SystemsWine Cellar Cooling Series

Both the CellarPro Mini Split 3000 and the CellarPro Model 4000 Split Systems are designed for smaller wine cellars up to 1000 cubic feet. Measuring just 16.6″ W x 12.6″ D x 22.1″ H, the evaporator will occupy very little wall space allowing for maximum bottle storage. As with all the split system wine cellar cooling models, it will require a dedicated 20amp 115V/60Hz circuit. CellarPro cooling units offer a choice of wiring:

Option 1
The Condensing unit can be wired to the evaporator and controlled by it, therefore needing only a single power outlet in the wine cellar. This option will allow the unit to operate in temperatures as low as -20F degrees.
Option 2
The Condensing unit can be controlled by a separate Solenoid valve, dual power source, one for the Condenser unit and the other for the Evaporator unit.

The CellarPro Model 6000SWine Cellar Cooling Series

CellarPro Model 6000S will cool wine rooms that range in size from 800-1500 cubic feet. Measuring 30.4″ W x 14.4″ D x 13.2″ H at ½ ton nominal cooling, it is more rectangular in shape which again allows for maximum bottle storage while occupying little wall space.

The CellarPro Model 8000S Wine Cellar Cooling Series

The CellarPro 8000S is ideal for large wine cellars up to 2000 cubic feet. The evaporator measures 46.4″ W x 14.4″ D x 13.2″ H. With ¾ ton of cooling power you can be assured that all of your wines will rest comfortably at 57F degrees. All of the CellarPro Split Systems offer two wiring options as mentioned above.

These high-performance condensing units are ideal for extreme environments and operate efficiently in temperatures from below freezing and up to 110F degrees.External installations will require our outdoor condenser housing (sold separately) to protect it from the elements and for temperatures that dip below 40F degrees, the compressor heater modification is required.
